Description

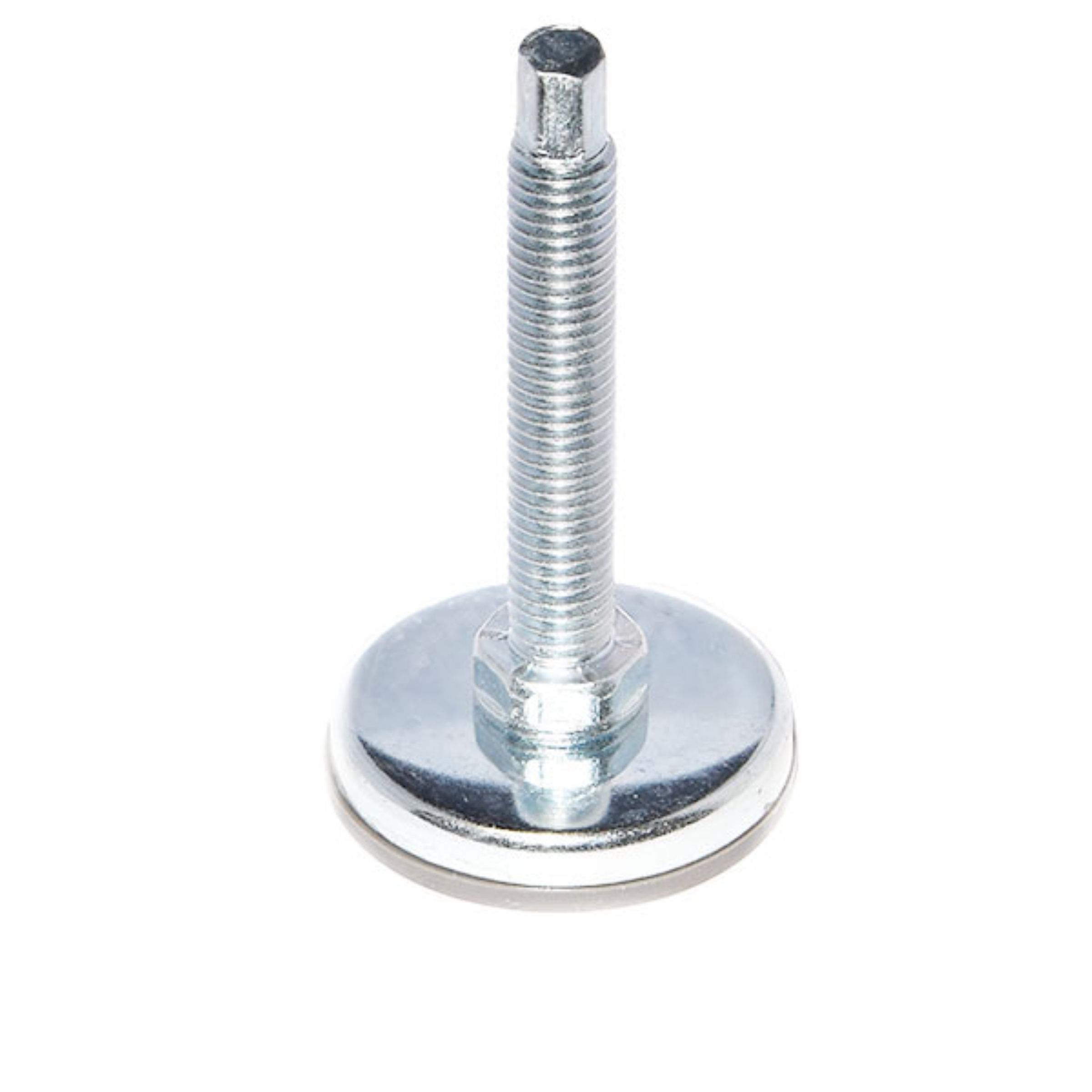

Adjust and level heavy machinery without rotating the leveling foot against the floor. This heavy-duty machinery leveling glide features a rotating threaded stem and a stationary plastic base, allowing equipment to be raised or lowered while the base remains in place.
Unlike conventional leveling feet that swivel or rotate at the base, this design allows the threaded stem to turn independently of the plastic floor-contacting base. This helps prevent the base from twisting against the floor during height adjustments.
Featuring a zinc-plated finish and a heavy-duty 1/2-13 threaded stem, this adjustable leveling glide is designed for industrial, commercial, and machinery applications where reliable height adjustment is important.
Product Features
-
-
500 lb Weight Capacity: Supports up to 500 lbs per individual glide when used within its rated operating conditions.
- Rotating Threaded Stem: Allows height adjustment by rotating the threaded stem.
- Stationary Plastic Base: The base remains stationary during adjustment rather than rotating against the floor.
- Heavy-Duty Construction: Designed for machinery, equipment, and other demanding applications.
- Zinc-Plated Finish: Provides a protective finish on the metal components.
- Two Adjustment Options: All variations come with a base nut or a hex tip for height adjustment.
- Standard 1/2-13 Thread: Compatible with equipment designed for a 1/2-13 threaded leveling stem.
- Multiple Lengths and Base Sizes: Choose the configuration that suits your equipment.
-
Available Variations
Thread Size: 1/2-13
Stem Length:
- 2.5 inches
- 3.5 inches
- 4 inches

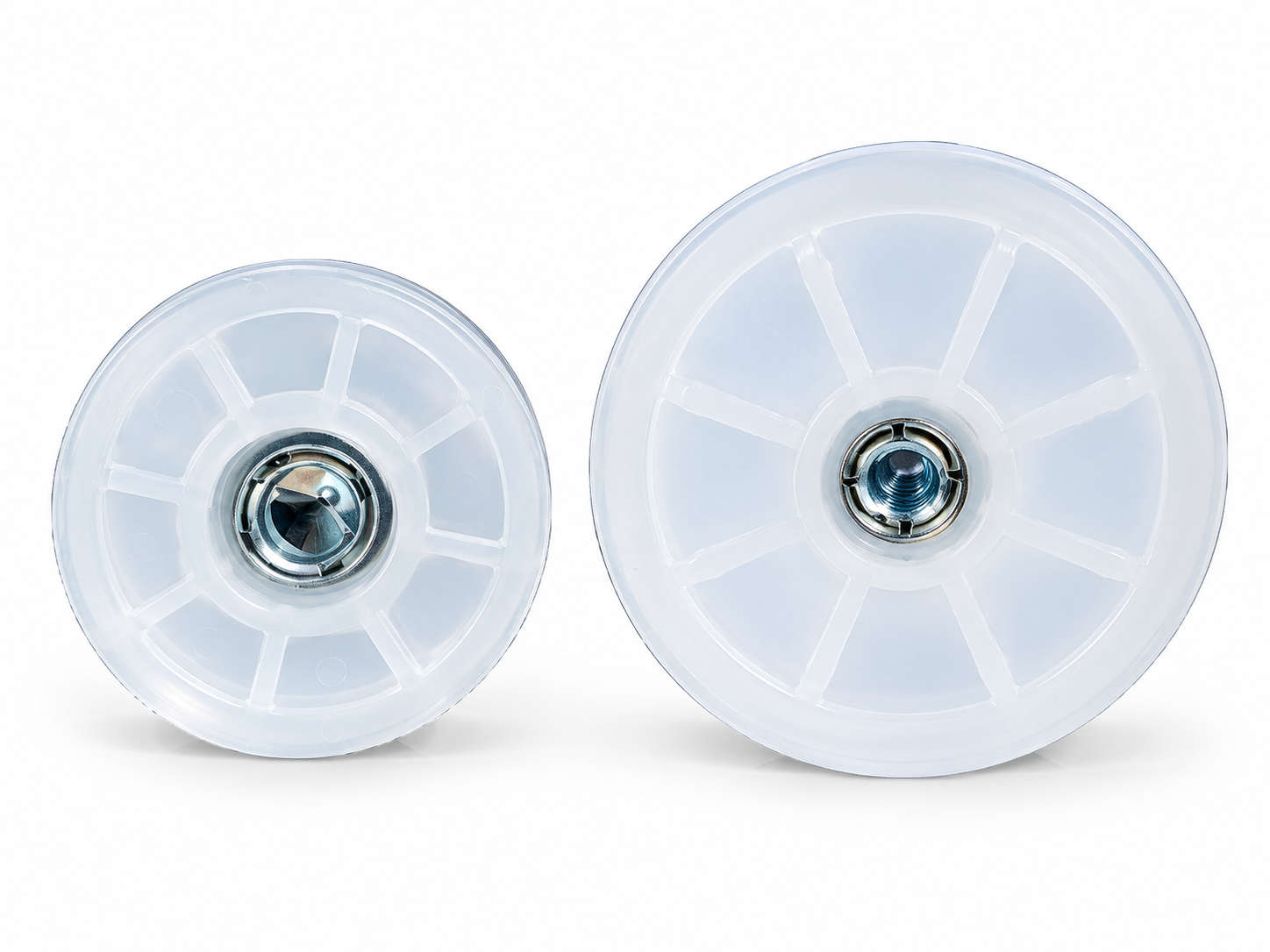

Base Diameter:
- 1 11/16 inches (43 mm)
- 2 1/8 inches (54 mm)
- 1 inch
Adjustment Style:
- Base nut
- Hex tip
Finish: Zinc-plated metal components
Base Material: Plastic or Rubber (for Grip)
Applications
Suitable for a variety of industrial and commercial applications, including:
- Heavy machinery and manufacturing equipment
- Conveyor systems and production lines
- Industrial workstations and workbenches
- Commercial equipment and fixtures including conveyors
- Tables, frames, and equipment requiring adjustable support
- Refrigerators electronics and kiosks
- Etc.
Why Choose This Leveling Glide?

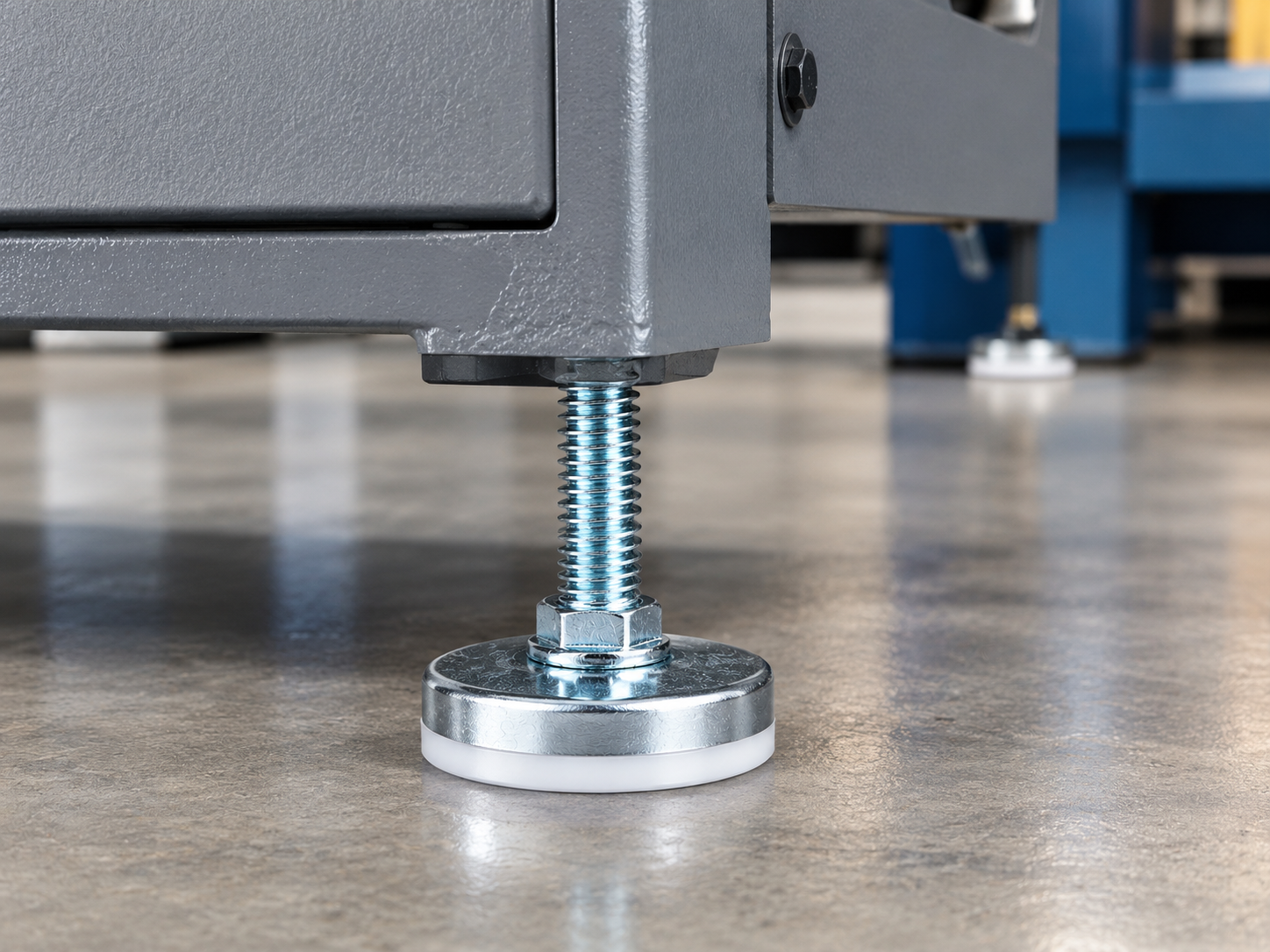

The rotating-stem design allows equipment height to be adjusted while the plastic base remains stationary against the floor. This is particularly useful when leveling machinery where rotating the foot against the floor is undesirable.
Choose from multiple stem lengths, base diameters, and adjustment styles to find the configuration that fits your application.
Use in industrial, commercial and residential environments.
Complete your Project with our high-quality Threaded tubing/piping Inserts for round or square tubing or T-nuts designed to complement our products.
Base nut is not removable.
All Glides meet or exceed federal and state standards, including Proposition 65 and RoHS.
Call for additional information or for bulk discounts call 1(866)-615-7941 or email us at [email protected]
